Modern Cabin House, 1 Bedroom, 16’ x 40’

Modern Cabin House, 1 Bedroom, 16’ x 40’

Regular price $79.90
Regular price $100.00 Sale price $79.90
Sale Sold out
Shipping calculated at checkout.

Modern Cabin House

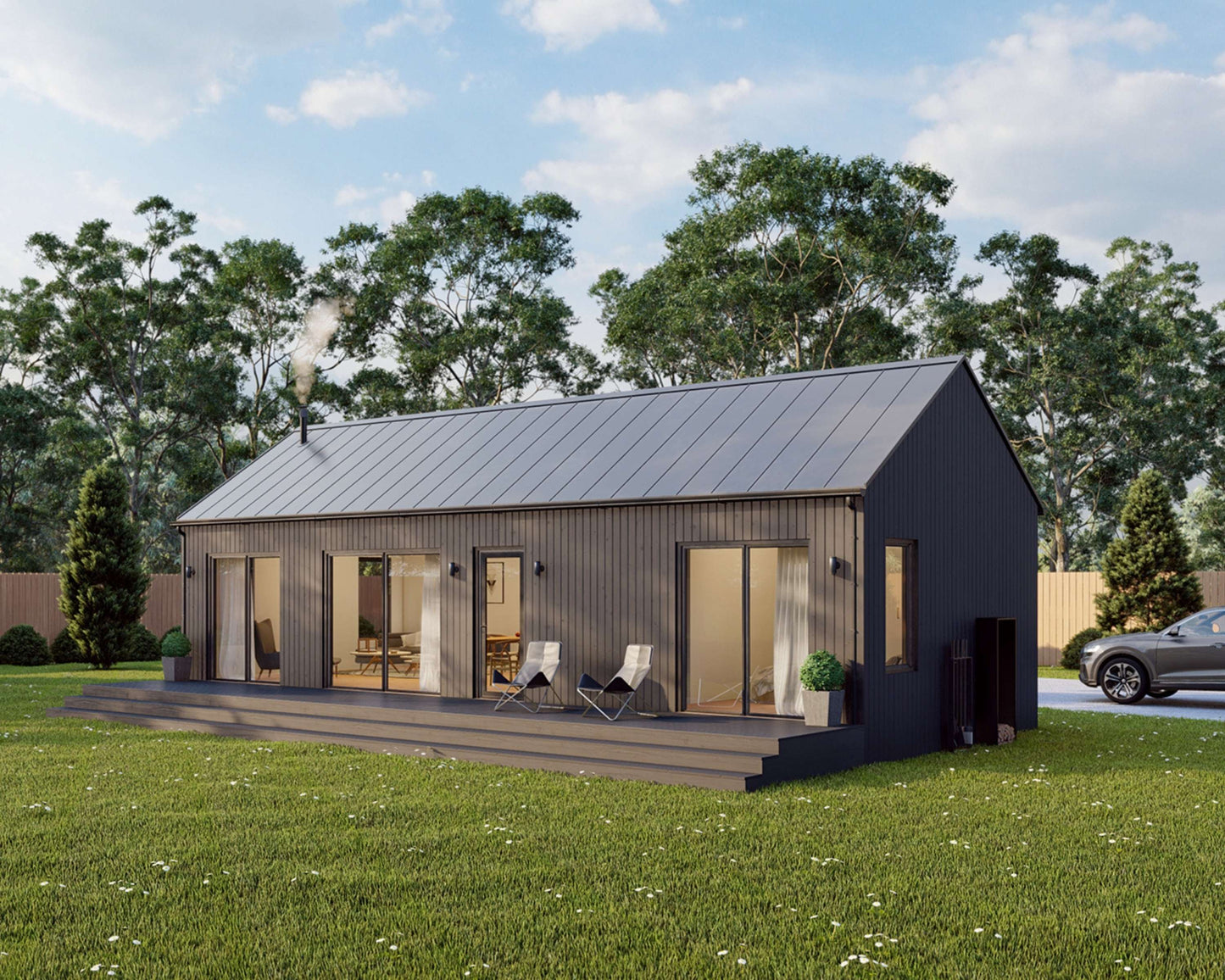

This great cabin house design is 16' X 40', with 1 bedroom and 1 bathroom. This modern designed cabin house has an open floor plan with large windows, high ceiling, large living room and kitchen. With its wide sliding doors, it gives you the opportunity to have a bright interior and see fascinating views. It provides you with complete architectural drawings of this building in PDF format when you purchase this product.


Features :

• Size: 40’ L X 16’ W
• Total Area: 640 Sq Ft
• Bedroom: 1
• Bathroom:1
• Deck: 40’ L X 6’ W
• Foundation: Crawl Space Foundation

View full details

Collapsible content

Compare Packages

If you are just starting out, you can choose our basic package and if you want to upgrade later, we will provide you with discount the amount of the basic package. Choose what works best package for you.

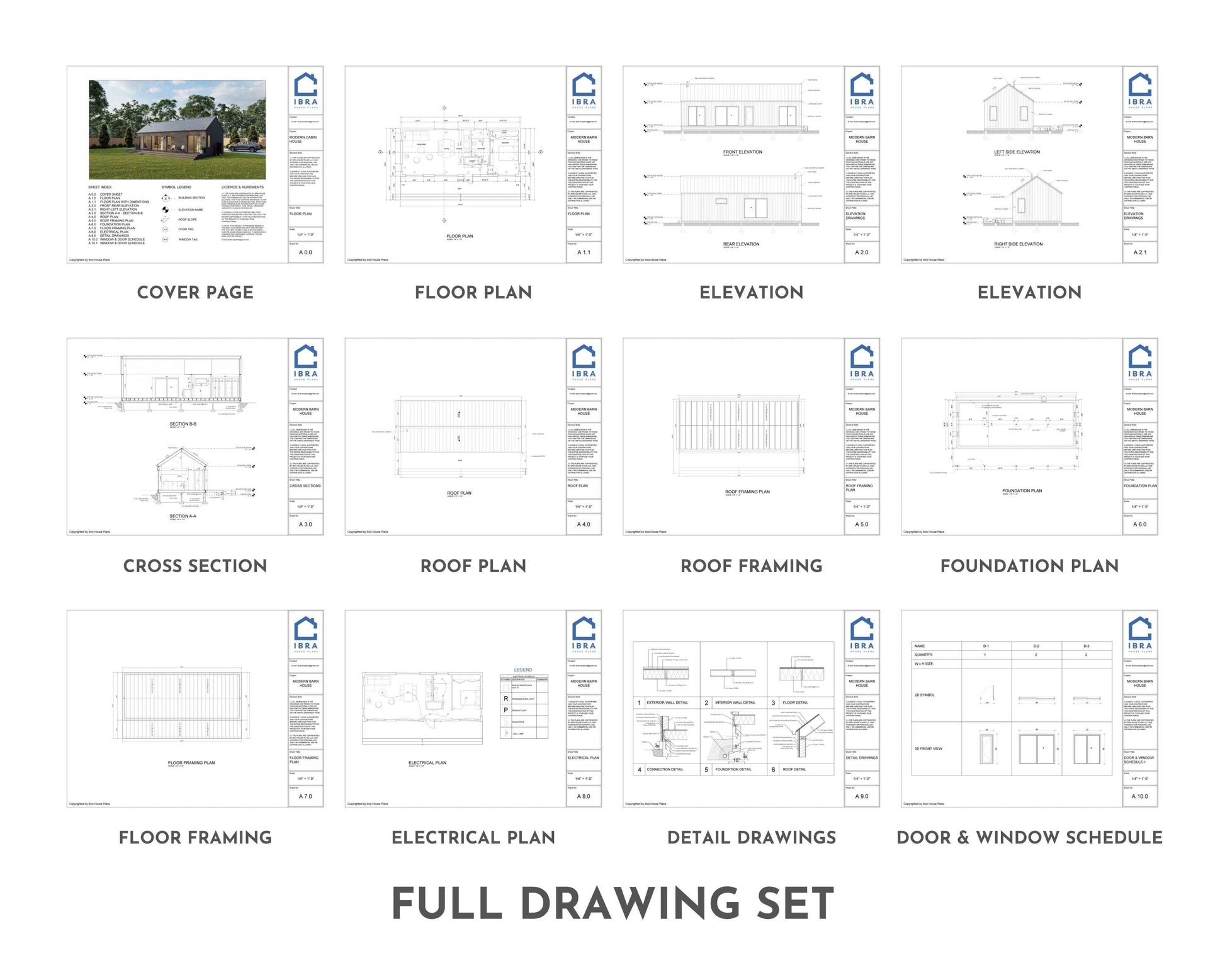

CAD (Editable)

3D Model (Sketchup)

Floor Plans


Cross Sections

Roof Plan

Roof Framing



Floor Framing




Detail Drawings


Door & Window


Material List




Custom Design

We offer the customization service to our customers. You can customize our designs with our experienced architects. This way you will get the design exactly the way you want it. Additional fee is charged for custom design service.

Please keep in mind that we only provide modifications for the Complete Package offer. Need something else? Email us here at or use the chat app on the website.


• This product is digital downloads. There is a "No" product that is physically shipped.
• You are purchasing the PDF file for this plan. Print it out whenever you like, as many times as you like. Plan prints to 1/4" = 1' scale on 17" x 22" paper.
• Plans are for information purposes only. No engineering or architectural stamps are included. You should consult with a qualified licensed builder, contractor or architect who is familiar with your local building codes before beginning any construction project.
• There are no returns, exchanges or cancellations in digital purchases.

All designs are copyright and original ©Ibra House Plans LLC. This design is for personal use only and may not be resold or redistributed.

Great plans, very well thought out! Exceptional customer service. I had some questions and received responses right away. Highly recommend!

Jami Lundrigan

  • Choose Plan

    Pick the plan with the features and style best for you.

  • Send Requests

    Send us your requests, after review we will send offer.

  • Fast Delivery

    Our architects complete changes within 7-14 days.
